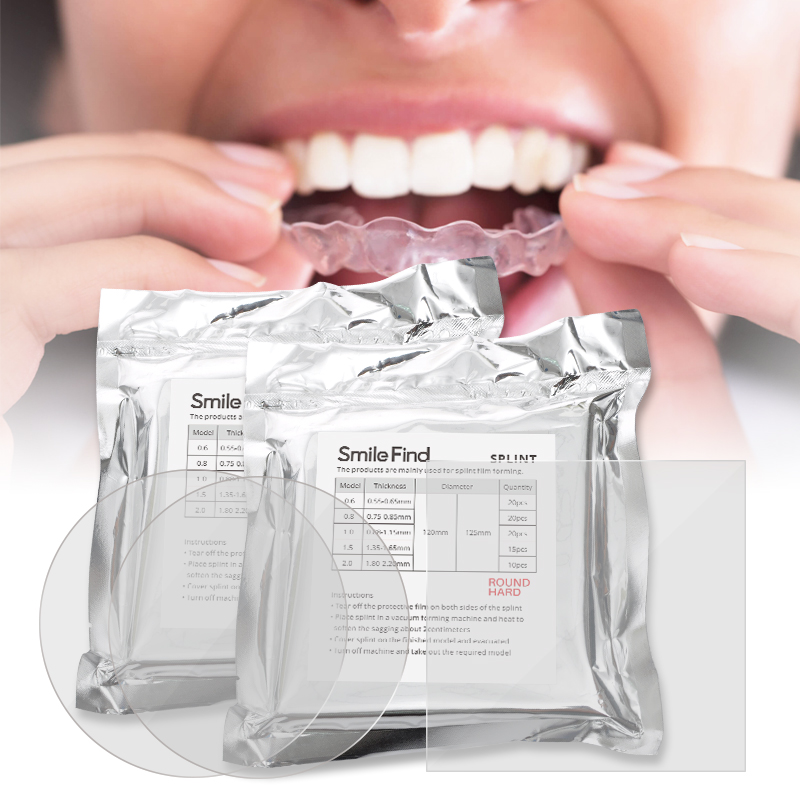

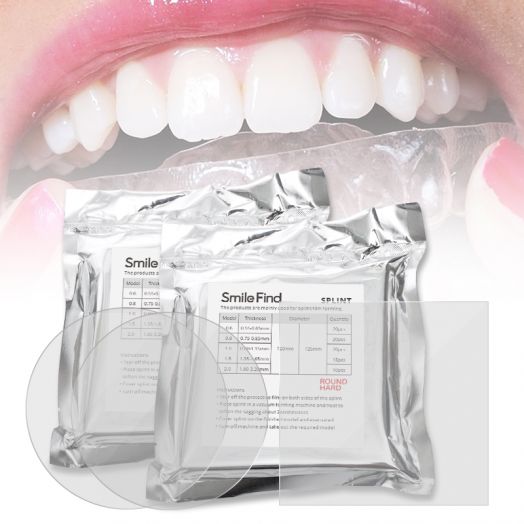

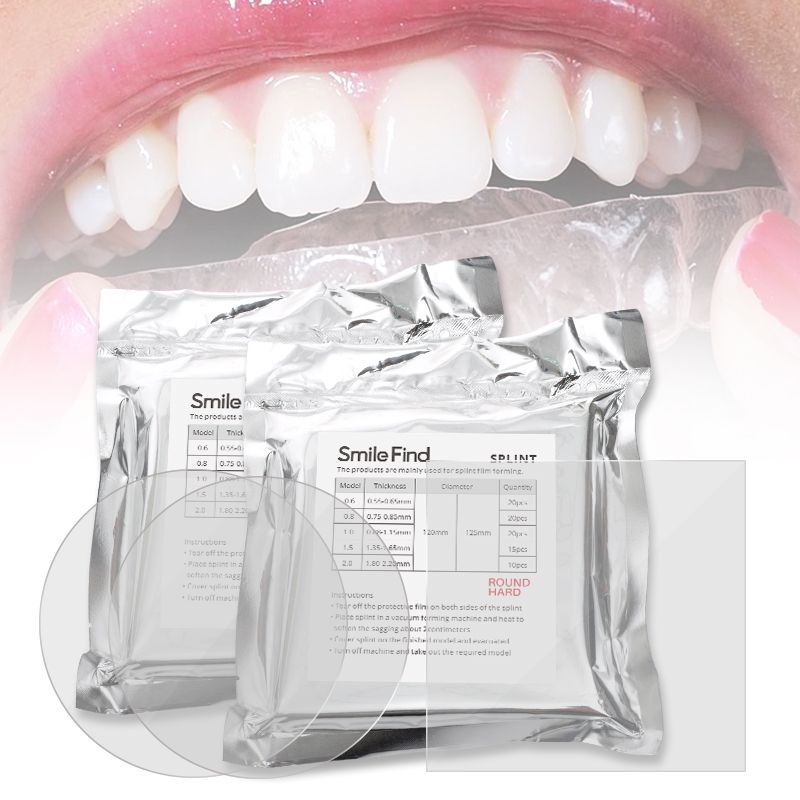

Dental Vacuum Forming Plastic Sheets
Dental Vacuum Forming Plastic Sheets are mainly used in dental medical retainer and other products blister die forming.
Product Details
The products are mainly used in dental medical retainer and other products blister die forming
1. Outstanding thermoforming properties prevent foaming
2. Flexible, flexible enough to prevent rupture
3. Provides excellent weather resistance and chemical resistance properties, to prevent discoloration, environment protection, and economic.
| HARD SHEET | SOFT SHEET |

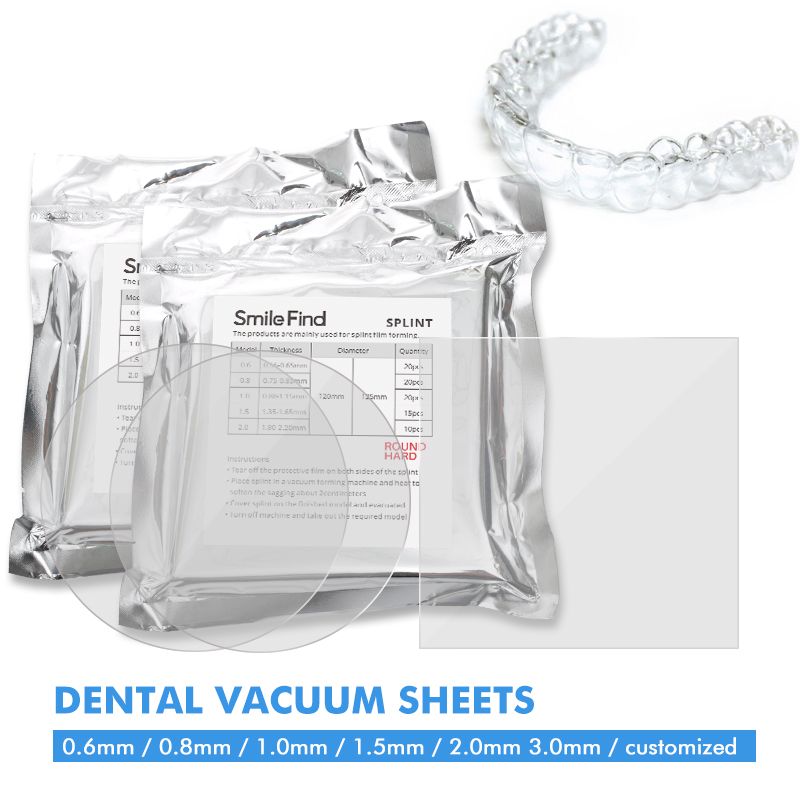

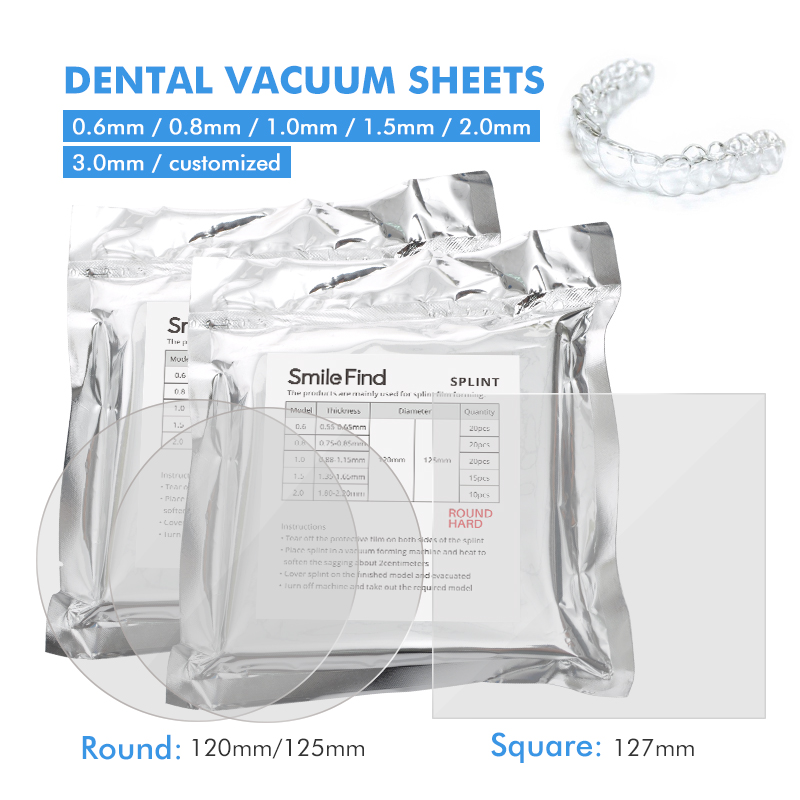

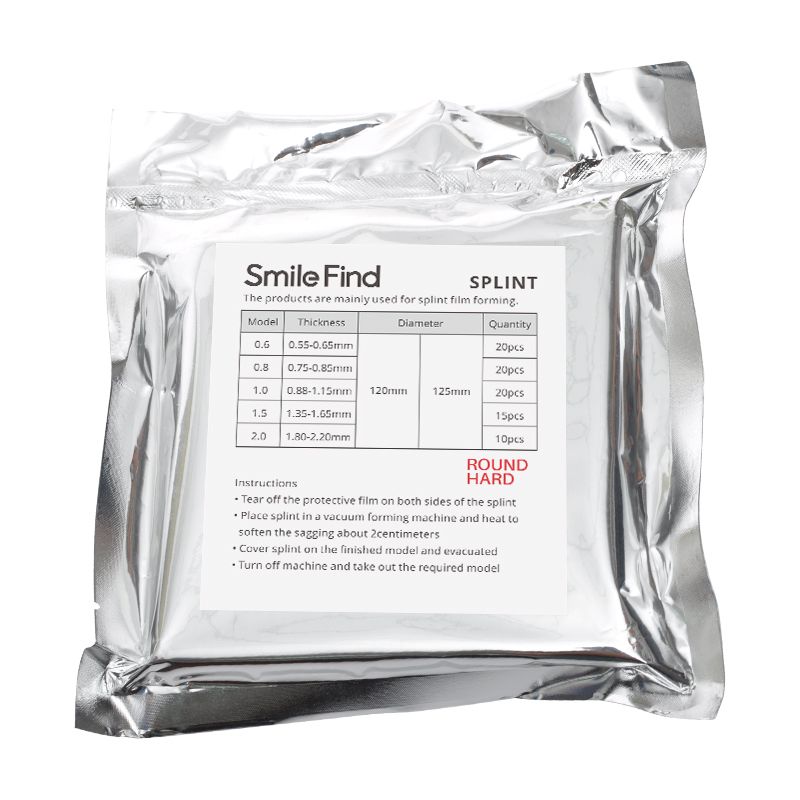

| 1. Stiff, brilliantly clear, Flexible & durable, no bubbles material, Compliance with international medical standards 2. 127x12mm square sheet, 120x120mm round sheet 3. Used for a custom-made mouth guard, invisible orthodontic retainers, Invisalign 4. Thickness 0.6mm, 0.8mm, 1mm, 1.5mm, 2mm optional | 1. Soft, brilliantly clear, Flexible & durable, no bubbles material, Compliance with international medical standards 2. 127x12mm square sheet, 120x120mm round sheet 3. Used for custom-made bleaching trays, soft bruxing 4. Thickness 1mm, 1.5mm, 2mm, 3mm optional |
Product Feature
| Appearance and material | Transparent. The materials of the sheet are food grade PVC |
| Formability | Uniform thermoforming over a reasonable temperature range. The thermoforming temperature should be suitable for use with 3D-printed plastic models. Preferably under 350 F. The melting point for the hard sheet is 160 degrees Celsius, which is equal to 315 F. |
| Thermoformed thickness | 1.0 mm, 1.5mm, 2.0mm |
| Material Shrink | The material should not shrink after thermoforming |
| Stress retention | Good stress retention over a 2-week period when deflected over a 1 mm range when formed. |
| Water absorption | Low water absorption. |

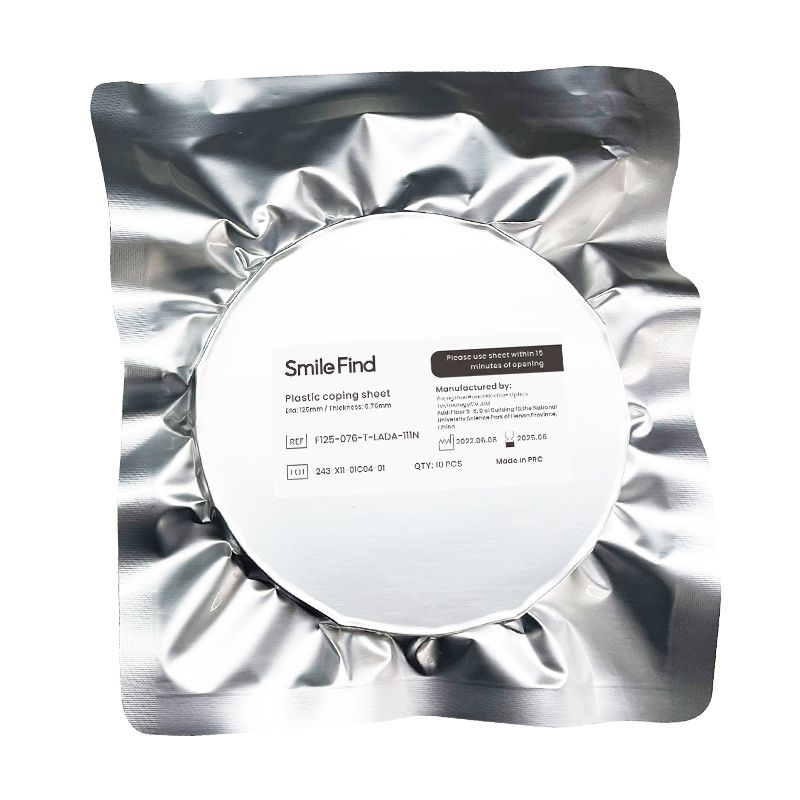

| Storage | The material does not absorb moisture during storage or should be sufficiently packaged to prevent moisture absorption. There's a transparent film over the sheet to prevent moisture |
| Force range | The material should be able to exert light constant force in the range of 1 – 2 N or 100 to 200 gmf when deflected to 0.25mm to 1 mm when thermoformed. The bearing capacity of the PVC particle is 200kg |
| Impact strength | The impact strength is 50kg |
| Tear Resistance | The tear resistance for this sheet reaches up to 300kg. |
| Bio-Compatibility | Can not be biocompatible with surface contact and contact with soft tissues in the oral cavity. |
| Stain Resistance | Can possess excellent stain resistance |

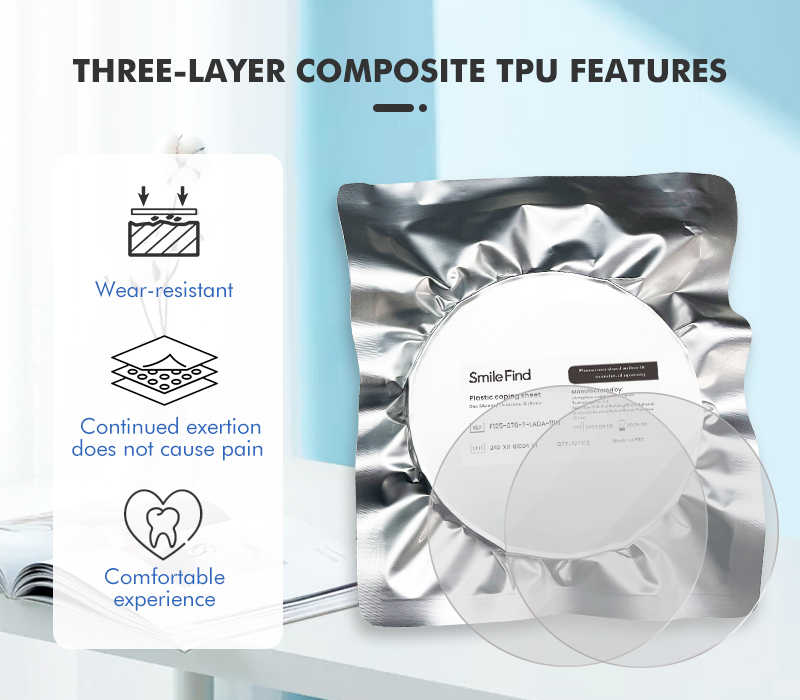

| Layers | Can be made of one layer or can be multilayered |
Sample & OEM Policy
1. Free samples will be offered for your test use.
* FREE Samples available to qualified businesses only. Please pay Shipping & Handling.;-)
2. We can provide customized packages and OEM for the products.
We have a professional designer who can make the artwork for the customized package. What you need to do is just tell us your requirement.
