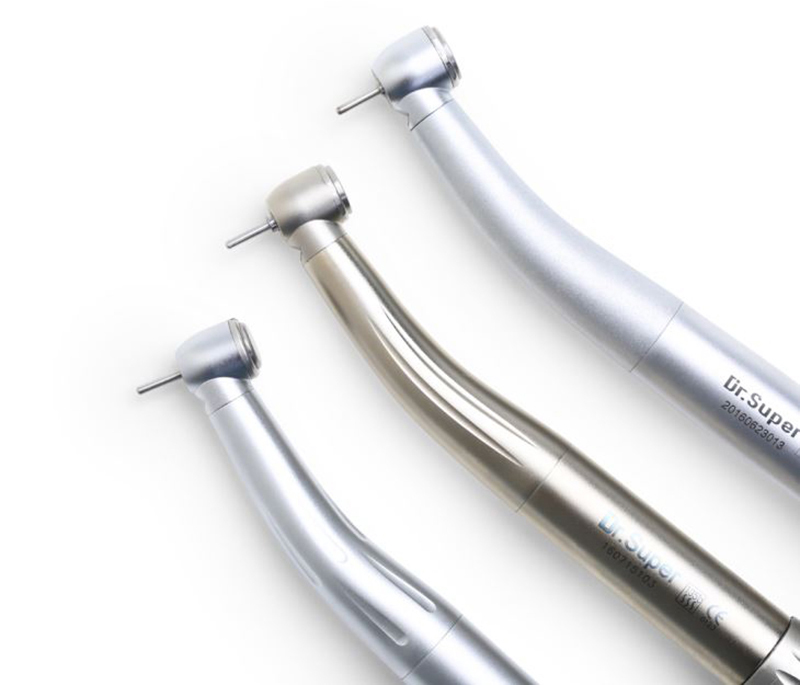

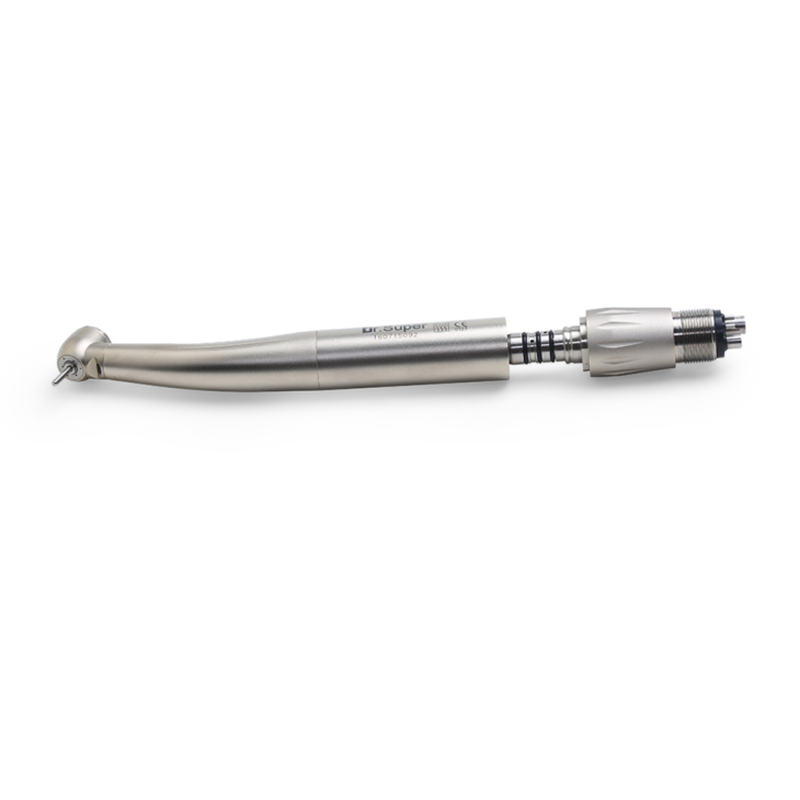

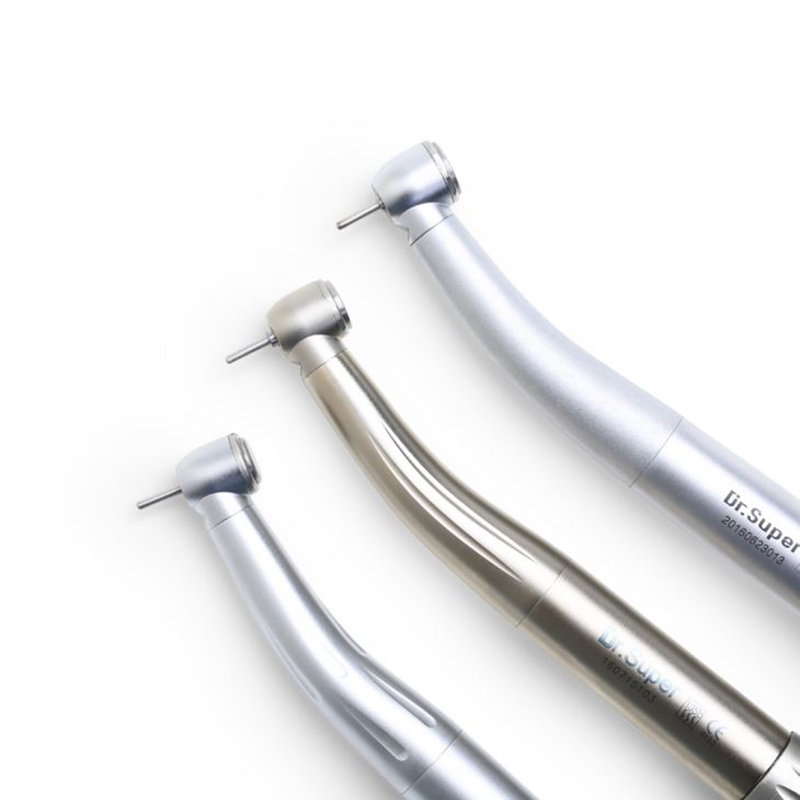

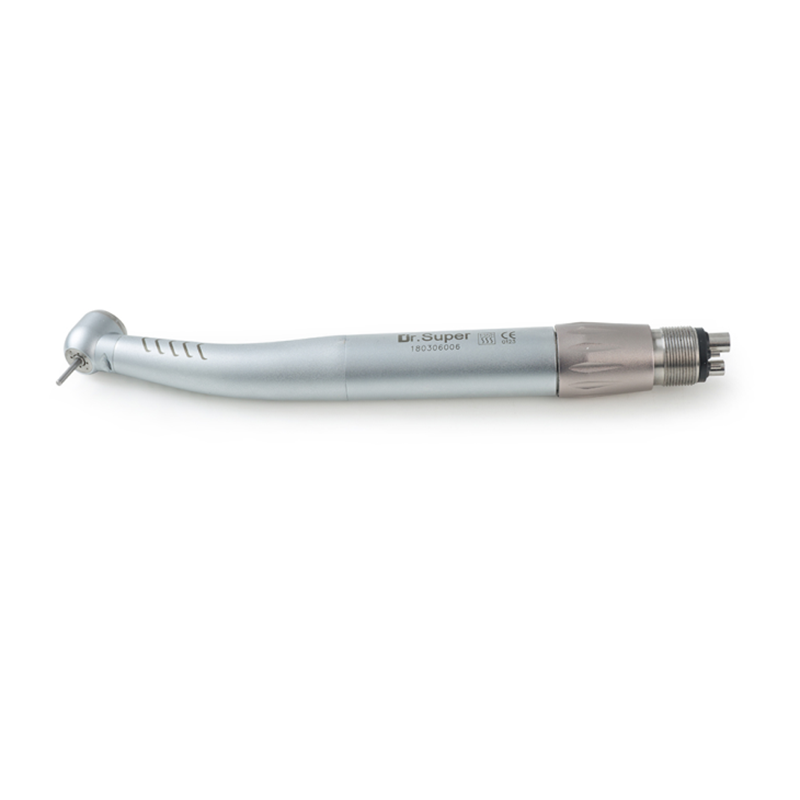

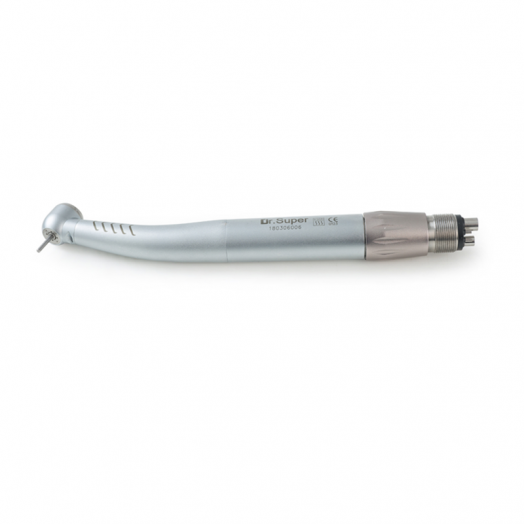

LED Quick Connector Dental Handpiece
The LED quick connector dental handpiece is a must-have dental instrument for every dentist. LED quick connector dental handpiece solves many oral problems for dentists during surgery and is an all-rounder among dental instruments. Imported fiber optic rods reduce the loss of light in the transmission,Original bearing from Japan nsk, high tensile ceramic material and wear resisting.High quality rubber sealing ring, good leakproofness and wear resisting.1 year free warranty for the handpiece, 6 month for the cartridge and 3 month for the bearing .
Product Details
It is very common for dentists to work continuously for a long time, especially in special cases. A good dental handpiece is very important during a long period of work. Chinese people often say that When a workman wishes to get his work well done,he must have his tools sharpened first. A good dental handpiece LED quick connector dental handpieceis the tool of surgery, only good tools can be used in surgery.
Product Specification
Operation Air Pressure | 0.25-0.30MPa(0.25MPa preferred) |
| Rotor Speed | ≥350(krpm)for Standard head; ≥280 (krpm) for torque head |
| Grip Power | 25-45N |
| Water Pressure | 0.2Mpa ( 2Kgf) |
| Water flow | 90(min/ml)-110(min/ml) |
| LED Luminous Intesity | ≥16000LUX |
Temperature | 3500(K)-4000（K） |
| Spray | triple spray |
Advantage

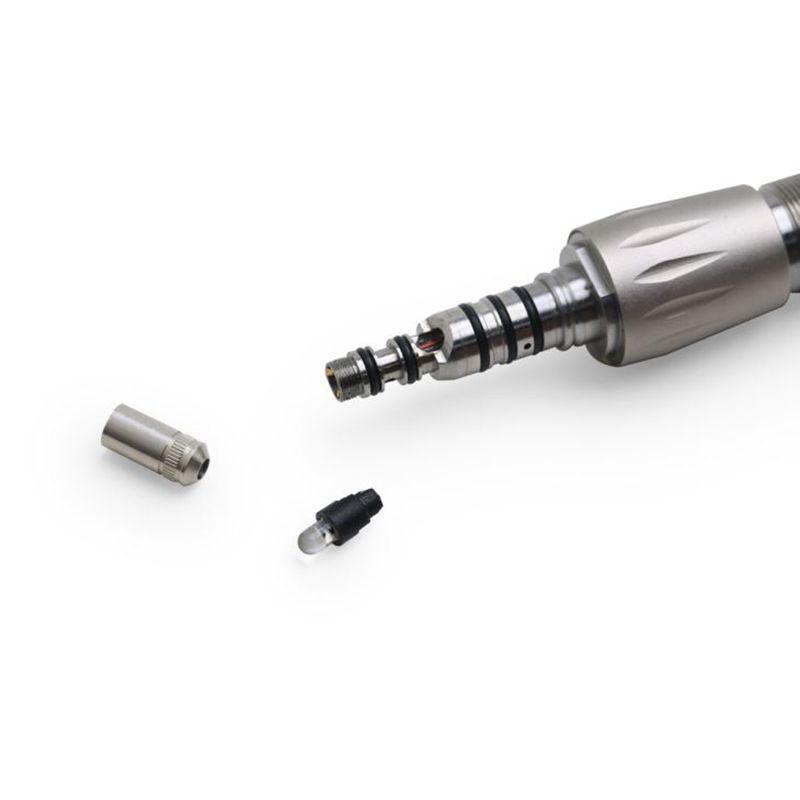

Quick connection
Because of dentists, there are a lot of clients and a huge amount of work to receive daily visits. In this kind of work, even though there are too many small repetitions of work, it is also very tiring, especially in the replacement of disinfected dental handpieces. Although changing the dental handpieces is not a bother, but in the face of a huge amount of work, gently unplug the dental handpieces, it is particularly easy.
Ergonomic mechanics handle
Dental handle are basically doctors' working hours considering the time they hold in their hands. Therefore, a good dental handpieces, in a certain way, will reduce the doctor's feeling of fatigue and make his work easier, because of occupational pain. It's all a result of a long period of subtle discomfort.LED quick connector dental handpiece ergonomic mechanics handle avoid this happening.

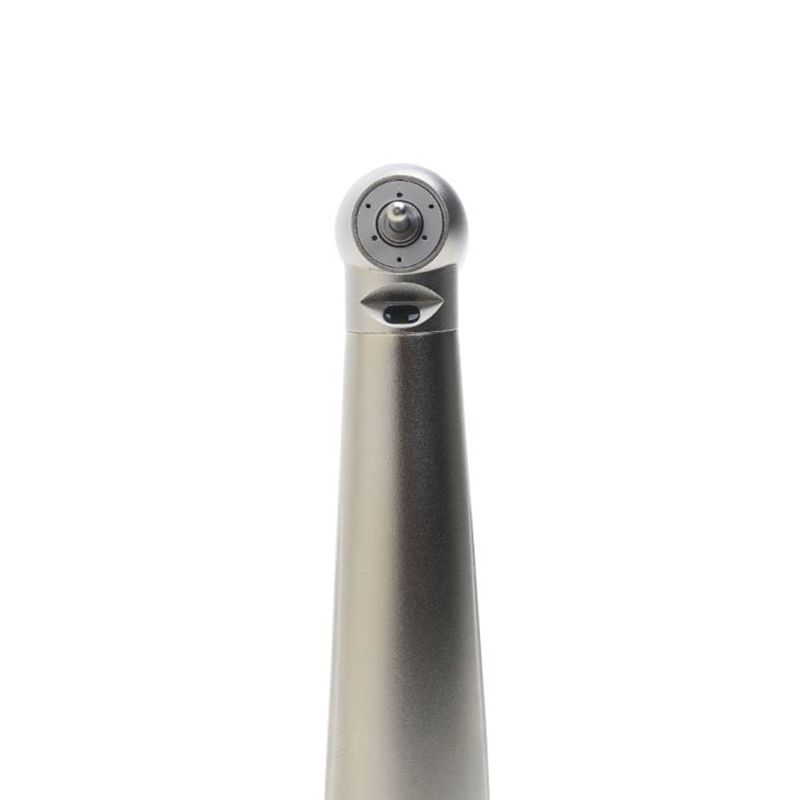

LED
An ordinary dental handpiece, need to use other instruments to see the specific situation in the mouth. A LED quick connector dental handpiece makes it more convenient for doctors to observe the status of oral cavity and make better judgment and diagnosis.
Proper lubrication of handpiece
Genenrally guidelines indicate that “only the portion of the at-tachment that comes in contact with patient tissue” is required to be sterilized, or disposed of. It is not necessary to sterilize the motor if a barrier is used. If you are not auto-claving motors, make sure they are removed from the tubing and lubricated at least once a week. Not removing motors at some interval leads to the accumulated disinfectant corrod-ing the threads onto the tubing permanently. Motors, especially rotary vane models, do not require much oil. Dental motors and attachments require higher viscosity oil than a high-speed spray. One or two drops of oil in the drive air line are all that is necessary. Run the motor to distribute the oil. Also apply some oil as a preventative measure to forward/ reverse valves, shift rings, and sheath attachment points. Wipe away excess oil with a paper towel. Most straight at-tachments do not require lubrication. Perform an external cleaning with a brush under running water prior to bagging the sheath or nose cone for sterilization.
